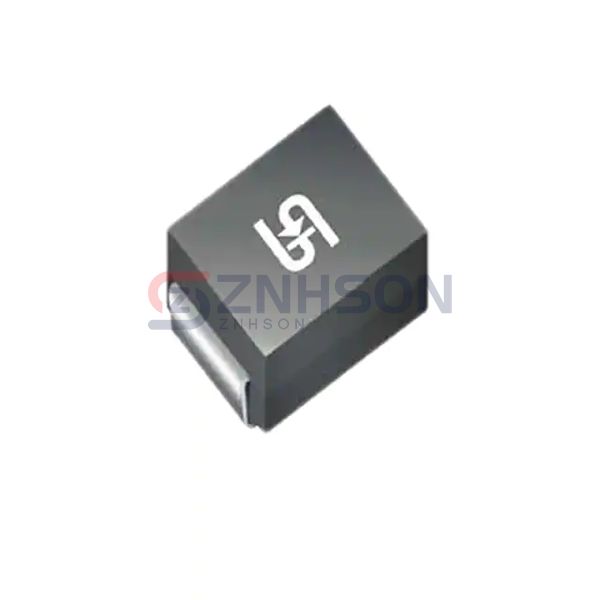

ES3CHR7G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 150V 3A DO214AB
$0.00
Available to order
Reference Price (USD)
1,700+
$0.19051
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the ES3CHR7G single rectifier diode from Taiwan Semiconductor Corporation. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The ES3CHR7G is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Taiwan Semiconductor Corporation's commitment to innovation ensures that the ES3CHR7G meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 150 V
- Capacitance @ Vr, F: 45pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
- Operating Temperature - Junction: -55°C ~ 150°C
