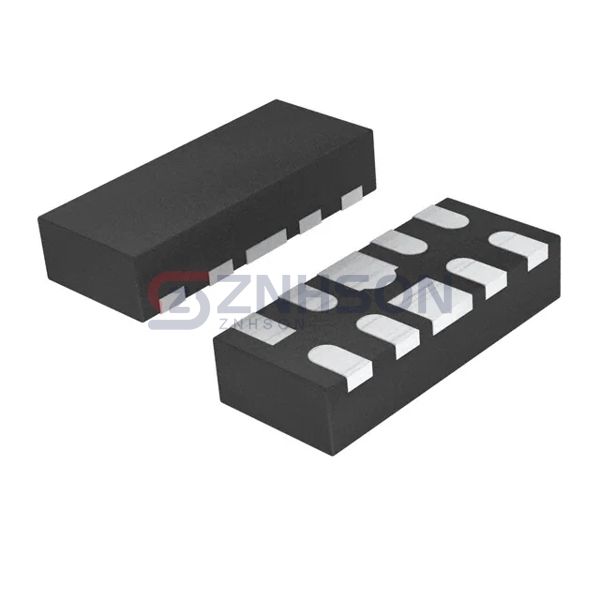

ESD224DQAR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 14VC 10USON
$0.55
Available to order
Reference Price (USD)
3,000+
$0.26796
6,000+
$0.24948
15,000+
$0.24640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD224DQAR by Texas Instruments is a premium TVS diode designed to protect your circuits from transient voltage events. With its fast response time and high surge capability, this diode is perfect for high-frequency applications. TVS diodes are essential in sectors like renewable energy, medical equipment, and data centers. They help mitigate risks from power surges and electrostatic discharge. For instance, the ESD224DQAR can secure servers in data centers from unexpected voltage spikes. Trust Texas Instruments for innovative and dependable TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 4
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 7.9V
- Voltage - Clamping (Max) @ Ipp: 14V
- Current - Peak Pulse (10/1000µs): 2A (8/20µs)
- Power - Peak Pulse: 17W
- Power Line Protection: No
- Applications: Ethernet, HDMI, USB
- Capacitance @ Frequency: 0.5pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFDFN
- Supplier Device Package: 10-USON (2.5x1)
