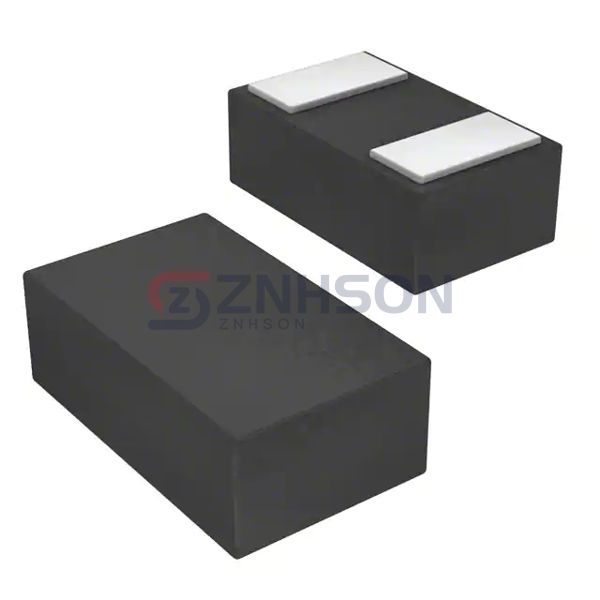

ESD401DPYR
Texas Instruments
Texas Instruments
TVS DIODE 5.5VWM 24VC 2X1SON
$0.43
Available to order
Reference Price (USD)
10,000+
$0.13838
30,000+
$0.12760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with the ESD401DPYR TVS diode from Texas Instruments. This diode excels in clamping transient voltages and ensuring system integrity. TVS diodes are crucial in applications ranging from consumer electronics to military hardware. They provide robust defense against voltage surges, such as those caused by lightning or switching loads. For example, the ESD401DPYR can protect military communication systems from transient interference. Texas Instruments offers top-grade TVS diodes engineered for superior performance and reliability.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5.5V (Max)
- Voltage - Breakdown (Min): 7.5V
- Voltage - Clamping (Max) @ Ipp: 24V (Typ)
- Current - Peak Pulse (10/1000µs): 4.5A (8/20µs)
- Power - Peak Pulse: 67W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 2-X1SON (1x.60)
