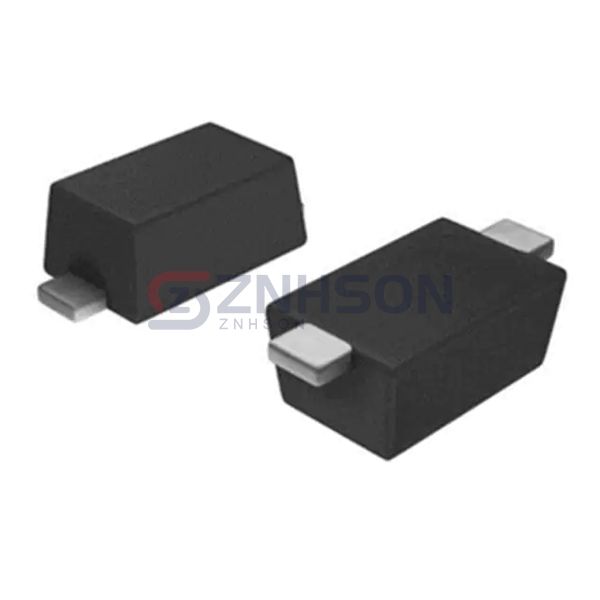

ESD5Z15V
MDD
MDD
TVS DIODE 15VWM 23VC SOD523
$0.09
Available to order
Reference Price (USD)
1+
$0.08650
500+
$0.085635
1000+
$0.08477
1500+
$0.083905
2000+
$0.08304
2500+
$0.082175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the ESD5Z15V TVS diode by MDD. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the ESD5Z15V are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the ESD5Z15V can shield HDMI ports in consumer electronics from voltage surges. Trust MDD's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 15V
- Voltage - Breakdown (Min): 16V
- Voltage - Clamping (Max) @ Ipp: -
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 120W
- Power Line Protection: Yes
- Applications: General Purpose
- Capacitance @ Frequency: 28pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-523
- Supplier Device Package: SOD-523
