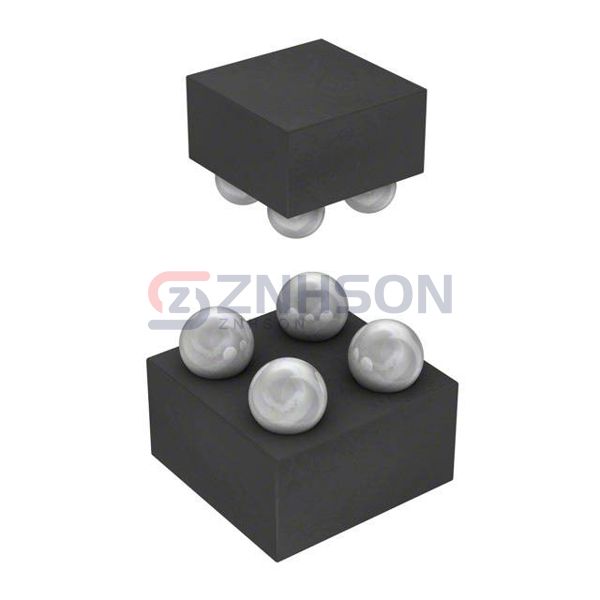

ESD6116
onsemi
onsemi
TVS DIODE 20VC 4WLCSP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESD6116 by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the ESD6116 can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Obsolete
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): -
- Voltage - Breakdown (Min): 16V
- Voltage - Clamping (Max) @ Ipp: 20V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 4-UFBGA, WLCSP
- Supplier Device Package: 4-WLCSP (0.8x0.8)
