ESDA7P120-1U1M
STMicroelectronics
STMicroelectronics
TVS DIODE 5.5VWM 11.5VC 1610
$0.47
Available to order
Reference Price (USD)
8,000+
$0.10614
16,000+
$0.10004
24,000+
$0.09699
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESDA7P120-1U1M TVS diode by STMicroelectronics delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the ESDA7P120-1U1M can protect GPS modules in vehicles from ESD events. STMicroelectronics provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5.5V
- Voltage - Breakdown (Min): 6.4V
- Voltage - Clamping (Max) @ Ipp: 11.5V
- Current - Peak Pulse (10/1000µs): 120A (8/20µs)
- Power - Peak Pulse: 1400W (1.4kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 2-UDFN
- Supplier Device Package: 1610
Related Products
Vishay General Semiconductor - Diodes Division
SMBG64CA-M3/52
Nexperia USA Inc.
PESD5V0X1BCAL,315
Vishay General Semiconductor - Diodes Division
SMBJ10CAHE3_A/H
Diodes Incorporated
SMAJ7.0CA-13-F
Vishay General Semiconductor - Diodes Division
SMCG15CA-M3/57T
Vishay General Semiconductor - Diodes Division
SM15T33A-M3/57T
Littelfuse Inc.
5.0SMDJ170CA-T7
Micro Commercial Co

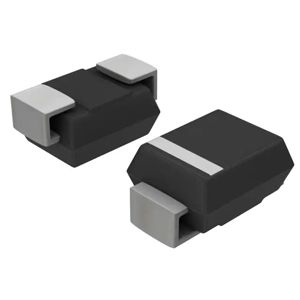

5.0SMLJ18A-TP
