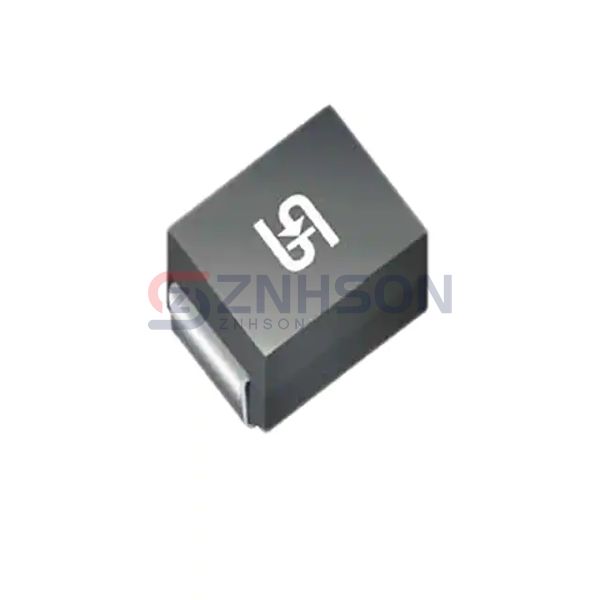

ESH3B R7G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE GEN PURP 100V 3A DO214AB
$0.00
Available to order
Reference Price (USD)
1,700+
$0.19051
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESH3B R7G by Taiwan Semiconductor Corporation is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the ESH3B R7G ensures long-term reliability even in harsh operating conditions. Trust Taiwan Semiconductor Corporation for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 20 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 45pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
- Operating Temperature - Junction: -55°C ~ 175°C
