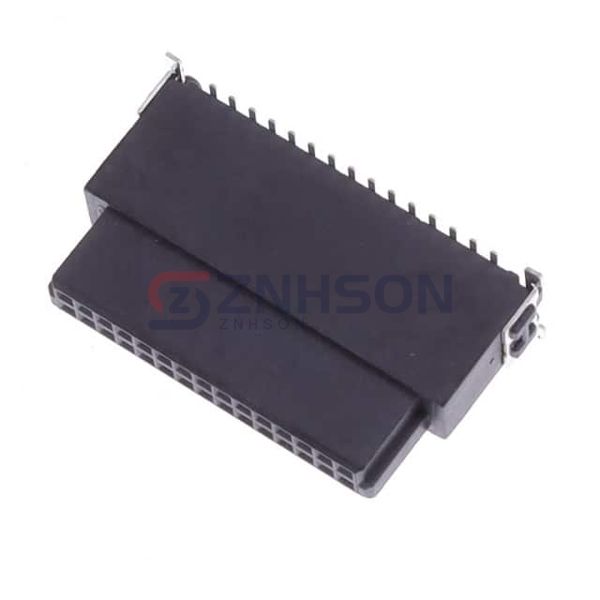

ESMC-F-30-SGS-SMT-C-PP-T/R
Adam Tech
Adam Tech
CONN RCPT VERT SMT 30POS 1.27MM
$2.83
Available to order
Reference Price (USD)
1+
$2.83000
500+
$2.8017
1000+
$2.7734
1500+
$2.7451
2000+
$2.7168
2500+
$2.6885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with ESMC-F-30-SGS-SMT-C-PP-T/R Adam Tech Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Adam Tech connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 30
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.537" (13.64mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 15.4mm, 16.9mm, 18.5mm
- Ingress Protection: -
- Features: Board Guide, Pick and Place, Solder Retention
- Current Rating (Amps): 1.2A
- Voltage Rating: -
