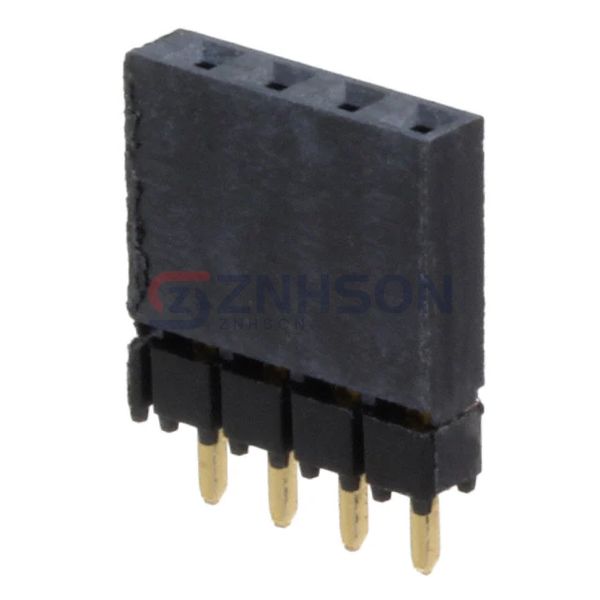

ESQ-104-12-G-S
Samtec Inc.
Samtec Inc.
CONN SOCKET 4POS 0.1 GOLD PCB
$2.47
Available to order
Reference Price (USD)
1+
$1.50000
54+
$1.03407
108+
$0.93056
540+
$0.77550
1,026+
$0.68761
5,022+
$0.64625
10,044+
$0.63333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with ESQ-104-12-G-S Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Samtec Inc. connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 4
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
