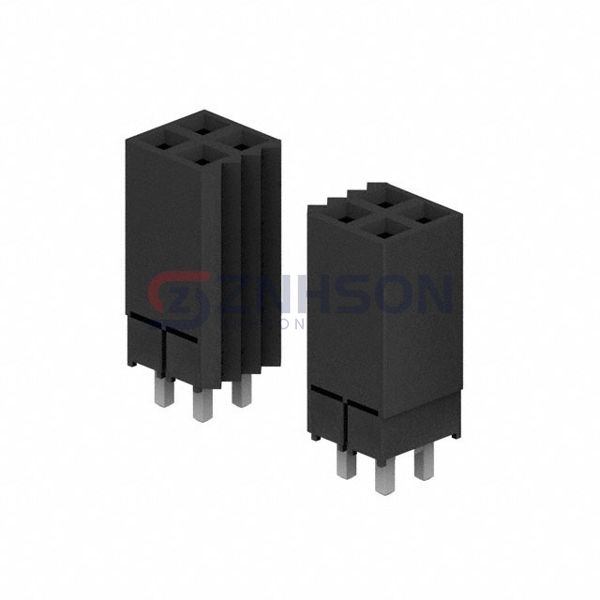

ESQ-110-12-T-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 20POS 0.1 TIN PCB
$3.73
Available to order
Reference Price (USD)
1+
$2.47000
10+
$2.04500
100+
$1.53360
500+
$1.27800
1,000+
$1.13316
5,000+
$1.06500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESQ-110-12-T-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
