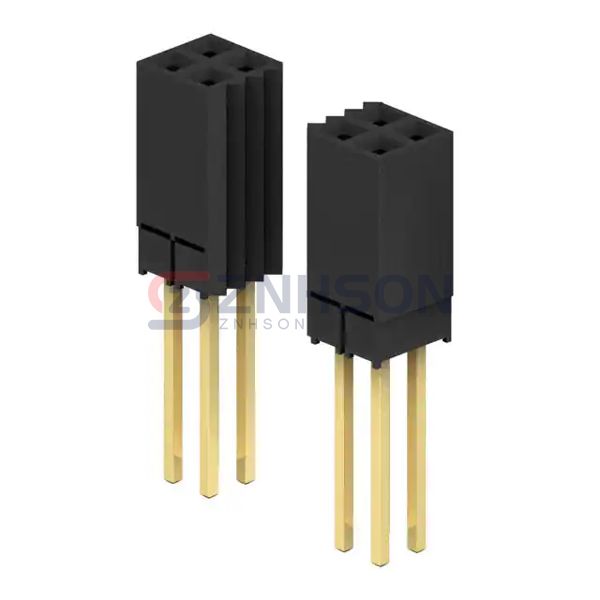

ESQ-110-14-G-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 20POS 0.1 GOLD PCB
$7.79
Available to order
Reference Price (USD)
1+
$4.84000
22+
$4.09182
110+
$3.16200
506+
$2.60399
1,012+
$2.41800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESQ-110-14-G-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are engineered for high-performance applications requiring stable and durable connections. Featuring temperature-resistant materials and vibration-proof designs, these connectors are perfect for automotive electronics, power supplies, and HVAC systems. Their versatility extends to EV charging stations, uninterruptible power supplies, and building automation. Trust Samtec Inc. for connectors that combine innovation with reliability.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.480" (12.19mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
