ESQ-132-12-S-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 64POS 0.1 GOLD PCB
$19.29
Available to order
Reference Price (USD)
1+
$8.93000
12+
$8.40000
102+
$7.35000
504+
$6.69375
1,002+
$6.43125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with ESQ-132-12-S-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Samtec Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 64
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
Related Products
Preci-Dip
346-83-141-41-036101
Samtec Inc.
BCS-130-L-S-PE-BE
Mill-Max Manufacturing Corp.
803-41-054-10-003000
Samtec Inc.
SFM-135-03-L-D
Preci-Dip
416-83-218-41-004101
Mill-Max Manufacturing Corp.
851-91-015-30-001000
Samtec Inc.
SL-132-G-19
HARTING
15824162601000
Preci-Dip

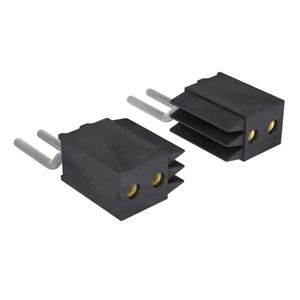

851-83-049-40-001101
