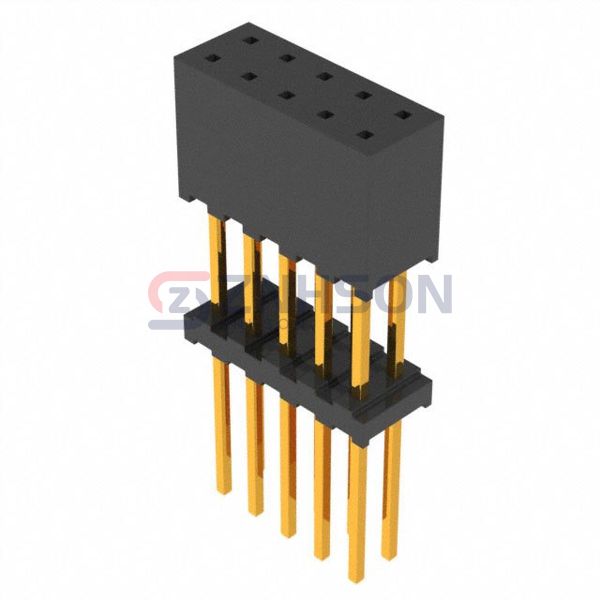

ESQT-105-02-G-D-525
Samtec Inc.
Samtec Inc.
CONN SOCKET 10POS 0.079 GOLD PCB
$7.46
Available to order
Reference Price (USD)
1+
$4.63000
10+
$3.91600
100+
$3.02600
500+
$2.49200
1,000+
$2.31400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESQT-105-02-G-D-525 Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.525" (13.34mm)
- Contact Length - Post: 0.325" (8.25mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.5A per Contact
- Voltage Rating: -
