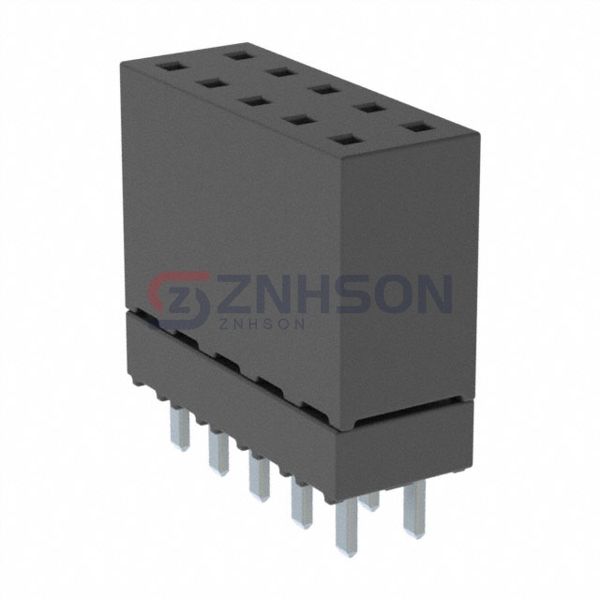

ESW-105-12-S-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 10POS 0.1 GOLD PCB
$3.64
Available to order
Reference Price (USD)
1+
$2.50000
10+
$2.07100
100+
$1.55340
500+
$1.29450
1,000+
$1.14779
5,000+
$1.07875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your project's performance with ESW-105-12-S-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are built to withstand harsh conditions while maintaining excellent electrical properties. Key features include high mating cycles, EMI shielding, and ergonomic designs. Widely used in renewable energy systems, robotics, and audio/video equipment, Samtec Inc. connectors ensure seamless integration. Applications range from solar inverters to industrial robots and professional AV setups.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.435" (11.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: 550VAC
