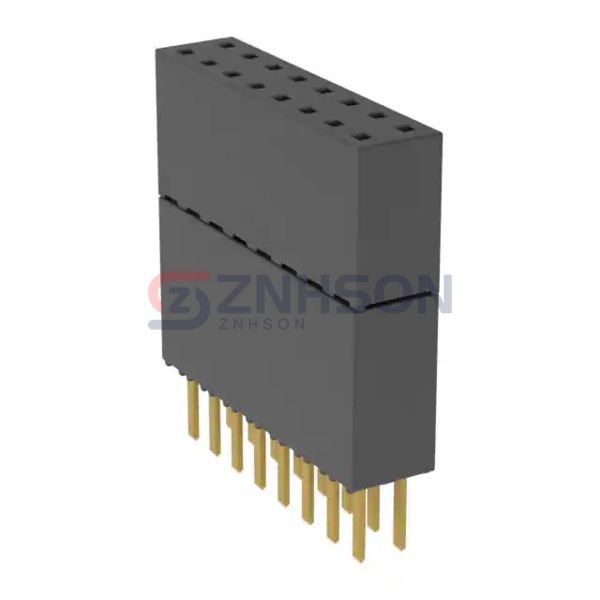

ESW-108-44-G-D
Samtec Inc.
Samtec Inc.
CONN SOCKET 16POS 0.1 GOLD PCB
$6.55
Available to order
Reference Price (USD)
1+
$4.08000
10+
$3.45400
100+
$2.66900
500+
$2.19800
1,000+
$2.04100
5,000+
$1.92325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESW-108-44-G-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Samtec Inc. provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 16
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.735" (18.67mm)
- Contact Length - Post: 0.180" (4.57mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: 550VAC
