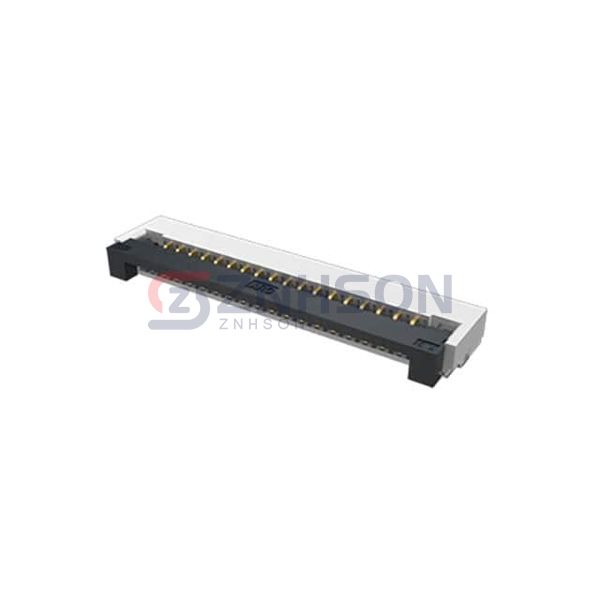

F516-1A7H1-21018
Amphenol ICC (FCI)
Amphenol ICC (FCI)
FLEX CONNECTOR, 1.00MM PITCH, HE
$0.60
Available to order
Reference Price (USD)
1+
$0.60000
500+
$0.594
1000+
$0.588
1500+
$0.582
2000+
$0.576
2500+
$0.57
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the F516-1A7H1-21018 FFC/FPC Connectors from Amphenol ICC (FCI), where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The F516-1A7H1-21018 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Amphenol ICC (FCI)'s eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for F516-1A7H1-21018 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 18
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.33mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Notched
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
