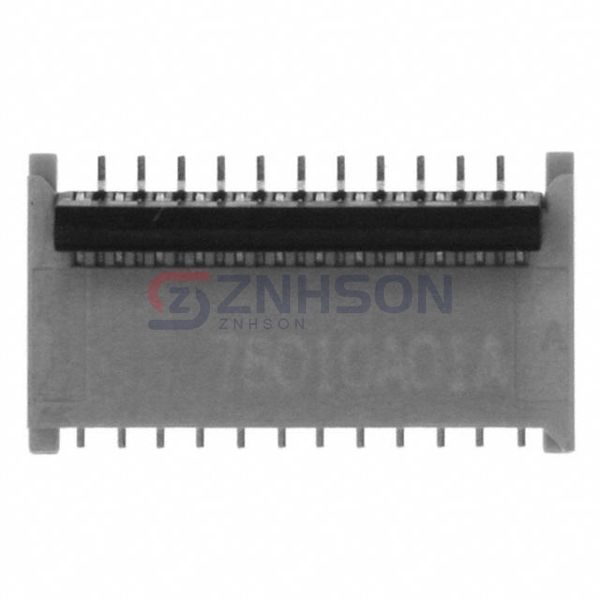

FB8S023JA1
JAE Electronics
JAE Electronics
CONN FPC TOP 23POS 0.30MM R/A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FB8S023JA1 FFC/FPC Connectors from JAE Electronics set the standard for high-performance interconnects in today's electronics. Featuring a slim design, gold-plated contacts, and superior EMI shielding, these connectors deliver unmatched signal clarity and durability. Ideal for applications like wearable tech, gaming consoles, and IoT devices, the FB8S023JA1 series guarantees a secure and efficient connection every time. JAE Electronics's commitment to quality ensures these connectors withstand frequent mating cycles and harsh conditions. Elevate your product's connectivity with the FB8S023JA1 the smart choice for flexible, high-density interconnections.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 23
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.047" (1.20mm)
- Locking Feature: Rotary Lock
- Cable End Type: Tapered
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyamide (PA), Nylon, Glass Filled
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
