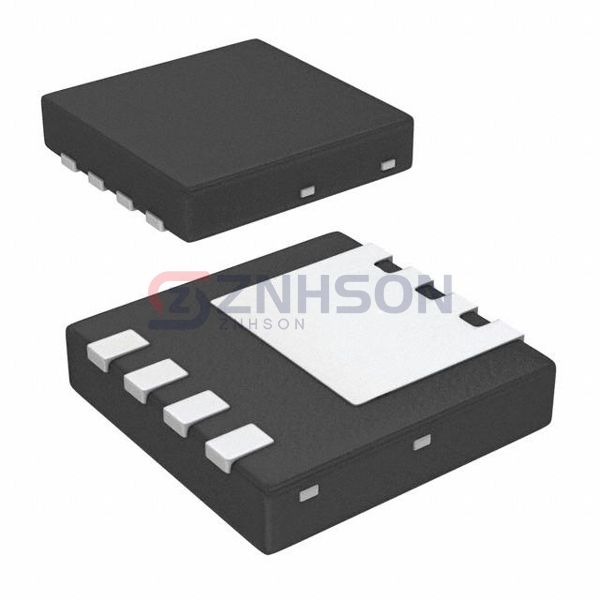

FDMC6686P
onsemi
onsemi
MOSFET P-CH 20V 18A/56A 8PQFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.74798
6,000+
$0.71058
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the FDMC6686P by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The FDMC6686P stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 18A (Ta), 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 4mOhm @ 18A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 122 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 13200 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.3W (Ta), 40W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3), Power33
- Package / Case: 8-PowerWDFN
