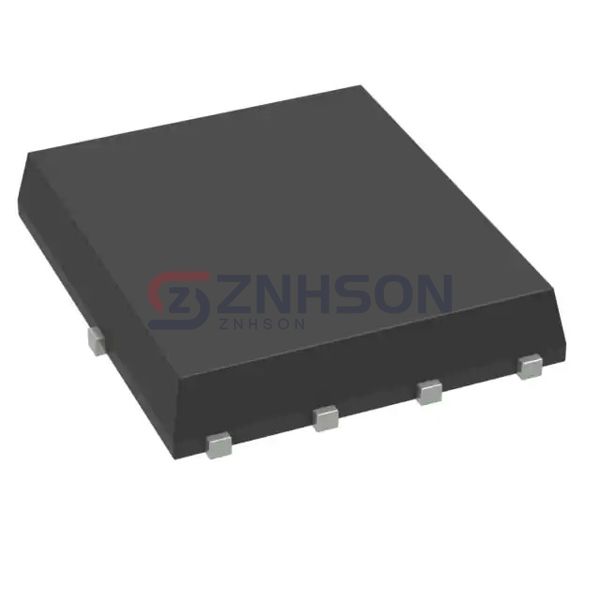

FDMS7560S
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 25V 30A/49A 8PQFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.64156
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS7560S by Fairchild Semiconductor is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Fairchild Semiconductor for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 49A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.45mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 93 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5945 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 89W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
NXP USA Inc.
PMZ370UNE315
Vishay Siliconix
SUP28N15-52-E3
Infineon Technologies
IRL3715STRR
Infineon Technologies
IRFSL3607PBF
IXYS
IXFT80N20Q
IXYS
IXTR90P10P
Nexperia USA Inc.
BUK7620-55A,118
Vishay Siliconix

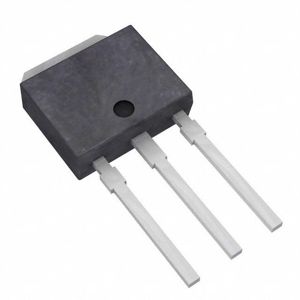

IRFU9120
