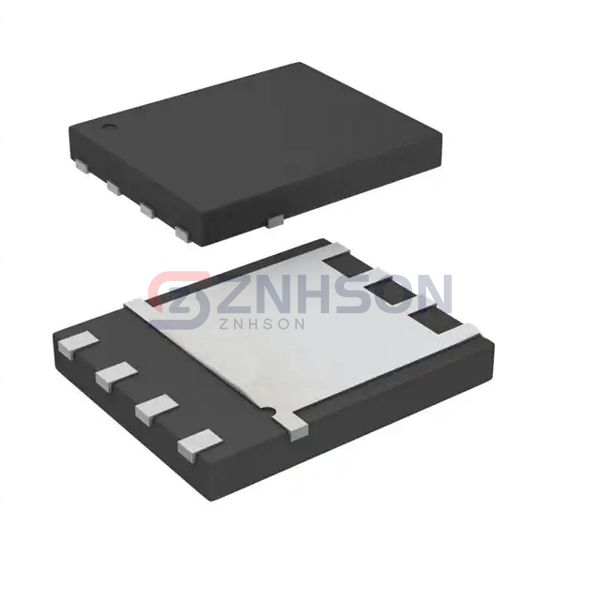

FDMS86202
onsemi
onsemi
MOSFET N-CH 120V 13.5A POWER56
$4.26
Available to order
Reference Price (USD)
3,000+
$1.55078
6,000+
$1.49248
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS86202 from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's FDMS86202 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 7.2mOhm @ 13.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 64 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4250 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 2.7W (Ta), 156W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
