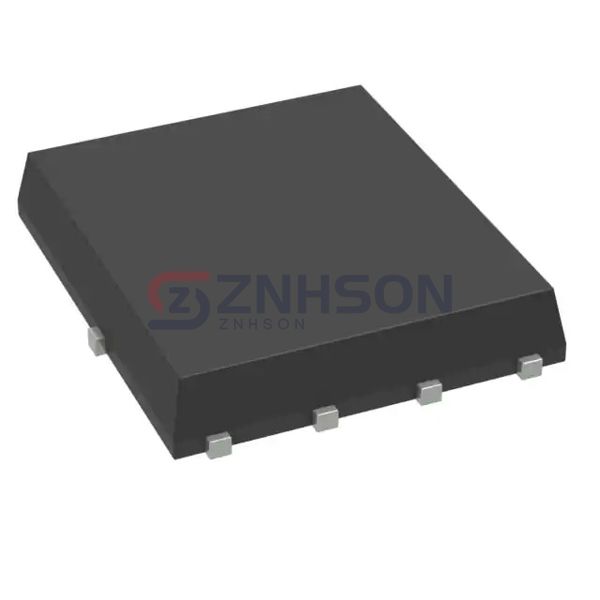

FDMS86520L
onsemi
onsemi
MOSFET N CH 60V 13.5A 8PQFN
$2.18
Available to order
Reference Price (USD)
3,000+
$0.69300
6,000+
$0.65835
15,000+
$0.63360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMS86520L from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's FDMS86520L for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 22A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.2mOhm @ 13.5A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 63 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4615 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 69W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
