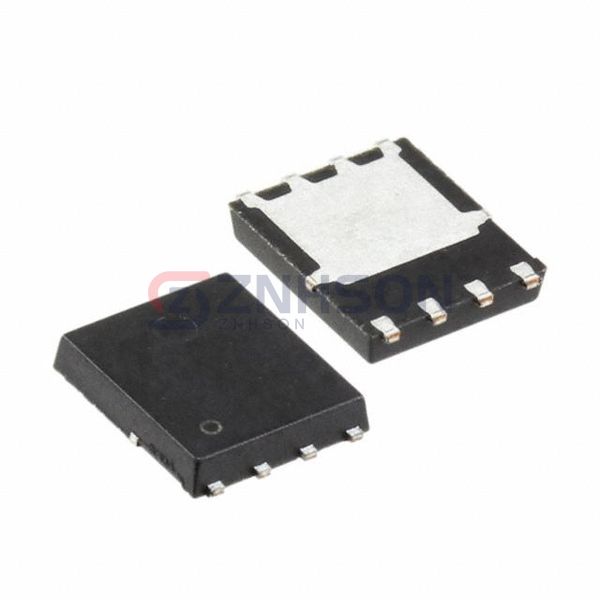

FDWS9509L-F085
onsemi
onsemi
MOSFET P-CH 40V 65A 8DFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.68484
6,000+
$0.65060
15,000+
$0.62614
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the FDWS9509L-F085 single MOSFET from onsemi. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust onsemi's FDWS9509L-F085 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 65A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8mOhm @ 65A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 67 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 3360 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 107W (Tj)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN (5.1x6.3)
- Package / Case: 8-PowerTDFN
