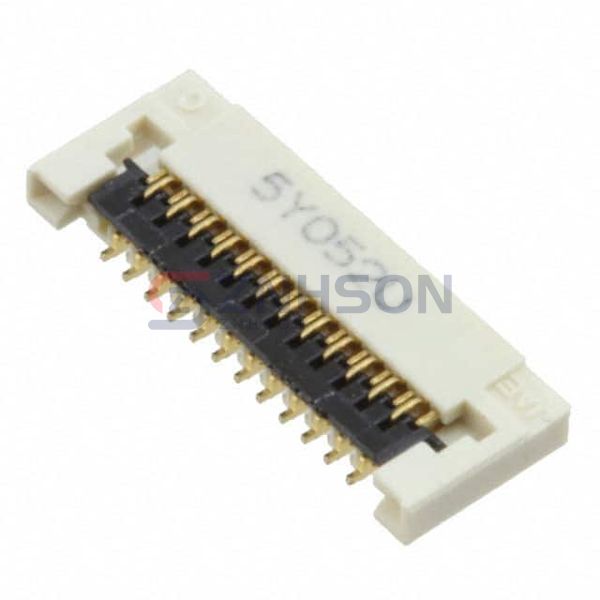

FF0225SS1
JAE Electronics
JAE Electronics
CONN FPC BOTTOM 25POS 0.30MM R/A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the FF0225SS1 FFC/FPC Connectors from JAE Electronics, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The FF0225SS1 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. JAE Electronics's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for FF0225SS1 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 25
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.12mm
- Height Above Board: 0.047" (1.20mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
