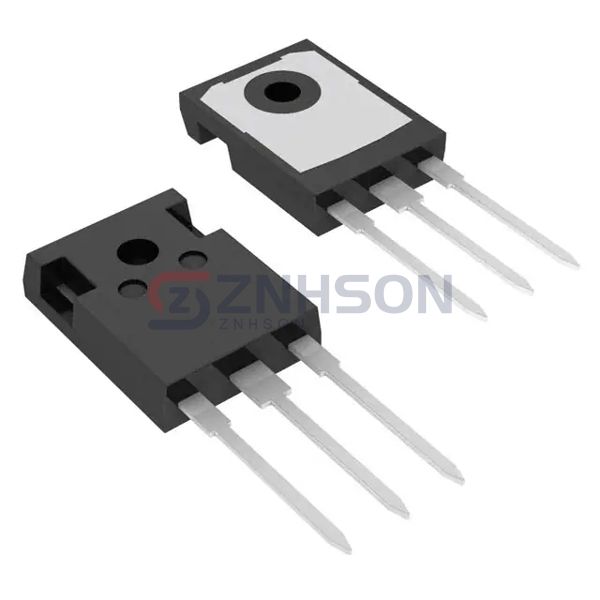

FGH60N60SFDTU
onsemi
onsemi
IGBT FIELD STOP 600V 120A TO247
$6.56
Available to order
Reference Price (USD)
1+
$5.77000
10+
$5.20200
450+
$4.08349
900+
$3.68269
1,350+
$3.13420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH60N60SFDTU by onsemi is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the FGH60N60SFDTU delivers robust performance. onsemi's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate FGH60N60SFDTU into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 60A
- Power - Max: 378 W
- Switching Energy: 1.79mJ (on), 670µJ (off)
- Input Type: Standard
- Gate Charge: 198 nC
- Td (on/off) @ 25°C: 22ns/134ns
- Test Condition: 400V, 60A, 5Ohm, 15V
- Reverse Recovery Time (trr): 47 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
