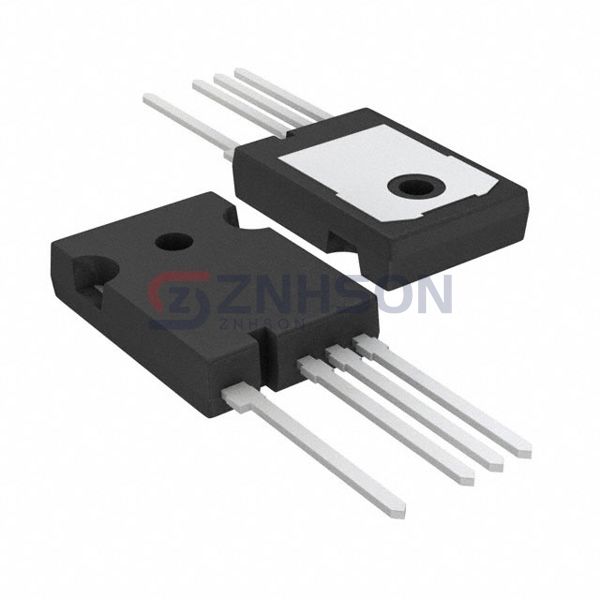

FGH75T65SHDTL4
onsemi
onsemi
IGBT FIELD STOP 650V 150A TO247
$7.39
Available to order
Reference Price (USD)
1+
$8.45000
10+
$7.63300
450+
$6.03509
900+
$5.50258
1,350+
$4.79257
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH75T65SHDTL4 from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose FGH75T65SHDTL4 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 150 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 455 W
- Switching Energy: 1.06mJ (on), 1.56mJ (off)
- Input Type: Standard
- Gate Charge: 126 nC
- Td (on/off) @ 25°C: 55ns/189ns
- Test Condition: 400V, 75A, 15Ohm, 15V
- Reverse Recovery Time (trr): 76 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247
