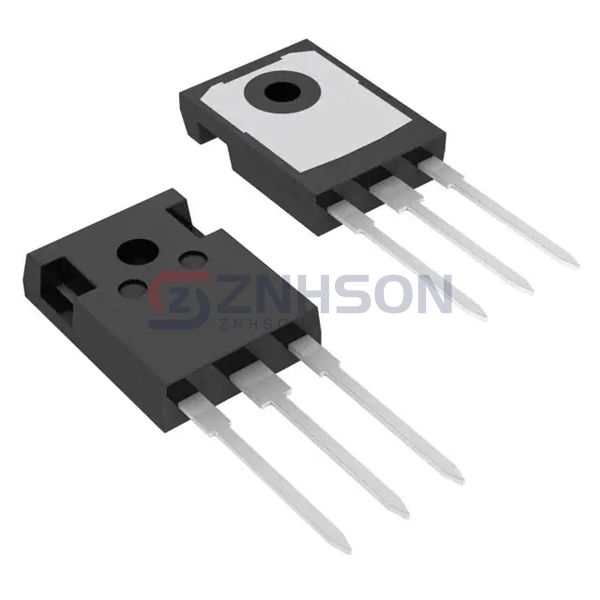

FGH80N60FDTU
onsemi
onsemi
IGBT 600V 80A 290W TO247
$0.00
Available to order
Reference Price (USD)
1+
$4.45000
10+
$4.01300
450+
$3.15038
900+
$2.84116
1,350+
$2.41801
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power management systems with the FGH80N60FDTU Single IGBT transistor from onsemi. This Discrete Semiconductor Product boasts high current density and excellent thermal conductivity, making it suitable for high-power applications. From railway systems to wind turbines, the FGH80N60FDTU provides reliable and efficient operation. onsemi's advanced semiconductor technology guarantees a component that excels in performance and durability. Choose FGH80N60FDTU for your critical power needs.
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 290 W
- Switching Energy: 1mJ (on), 520µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 21ns/126ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 36 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
