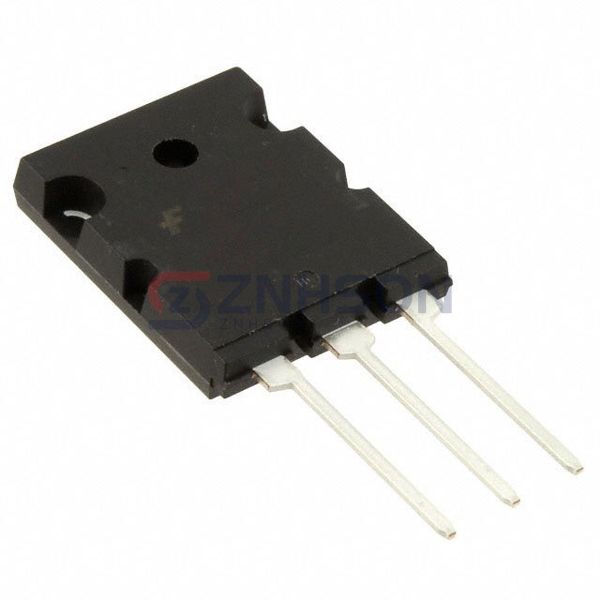

FGL12040WD
onsemi
onsemi
IGBT TRENCH/FS 1200V 80A TO264-3
$0.00
Available to order
Reference Price (USD)
1+
$8.21000
10+
$7.41600
375+
$5.86373
750+
$5.34633
1,125+
$4.65649
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the FGL12040WD Single IGBT transistor from onsemi. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the FGL12040WD delivers consistent and reliable operation. Trust onsemi's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 40A
- Power - Max: 391 W
- Switching Energy: 4.1mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 45ns/560ns
- Test Condition: 600V, 40A, 23Ohm, 15V
- Reverse Recovery Time (trr): 71 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264-3
