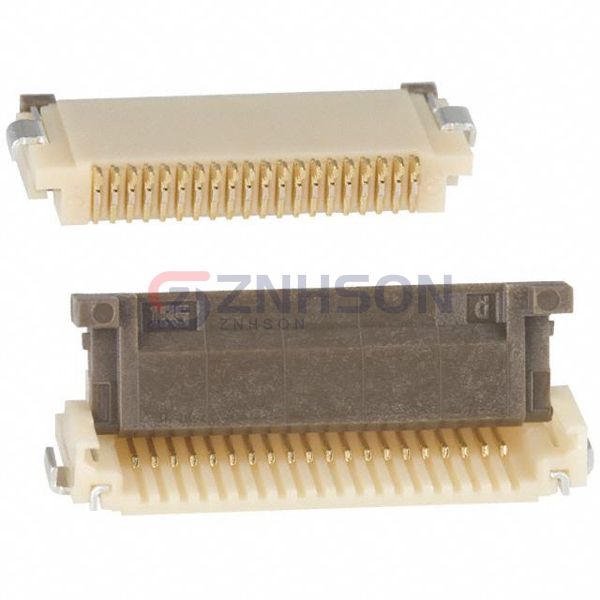

FH12-20S-0.5SH(1)(98)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FFC BOTTOM 20POS 0.50MM R/A
$2.34
Available to order
Reference Price (USD)
500+
$1.95500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FH12-20S-0.5SH(1)(98) FFC/FPC Connectors by Hirose Electric Co Ltd redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the FH12-20S-0.5SH(1)(98) delivers consistent performance. Hirose Electric Co Ltd's innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select FH12-20S-0.5SH(1)(98) for a connector that bridges innovation and practicality in your applications.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 20
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA), Nylon
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
