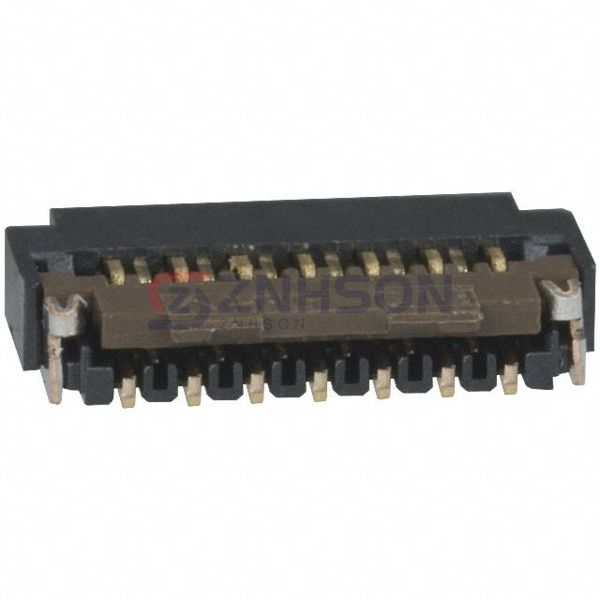

FH26-13S-0.3SHW(98)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FPC BOTTOM 13POS 0.30MM R/A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the FH26-13S-0.3SHW(98) FFC/FPC Connectors from Hirose Electric Co Ltd, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The FH26-13S-0.3SHW(98) series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Hirose Electric Co Ltd's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for FH26-13S-0.3SHW(98) when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 13
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyamide (PA), Nylon
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 30V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
