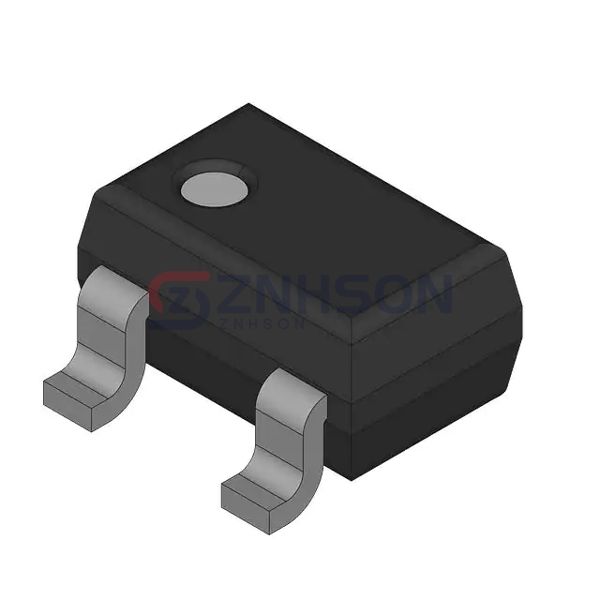

FJX3014RTF
Fairchild Semiconductor
Fairchild Semiconductor
0.1A, 50V, NPN
$0.00
Available to order
Reference Price (USD)
9,000+
$0.04511
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with Fairchild Semiconductor's FJX3014RTF, a pre-biased BJT transistor engineered for efficiency. This single bipolar transistor features optimized current gain and minimal leakage, perfect for low-power circuits. Its compact package suits space-constrained applications like IoT devices, automotive modules, and power management systems. Fairchild Semiconductor delivers superior discrete semiconductor solutions meeting rigorous industry standards for durability and performance.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 68 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- Frequency - Transition: 250 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SC-70 (SOT323)
Related Products
Diodes Incorporated
DDTA144VKA-7-F
Diodes Incorporated
ADTC113TCAQ-7
onsemi
FJN4309RBU
Toshiba Semiconductor and Storage
RN1109(T5L,F,T)
Panasonic Electronic Components
DRA2114Y0L
onsemi

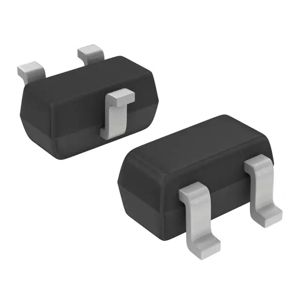

DTC123EET1
Diodes Incorporated

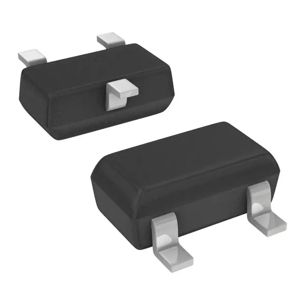

DDTC143FKA-7-F
