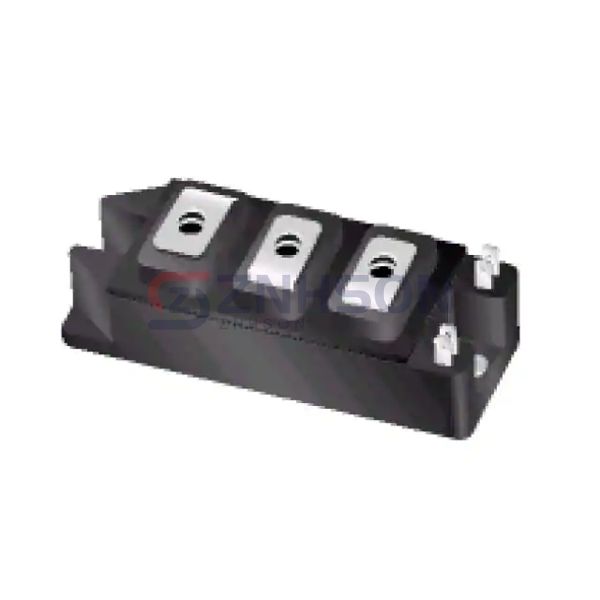

FMG1G200US60H
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 200A, 600V, N-CHANNEL
$55.63
Available to order
Reference Price (USD)
1+
$55.63000
500+
$55.0737
1000+
$54.5174
1500+
$53.9611
2000+
$53.4048
2500+
$52.8485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FMG1G200US60H by Fairchild Semiconductor redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the FMG1G200US60H in high-efficiency servo controllers for manufacturing automation. Fairchild Semiconductor combines innovation with quality in every FMG1G200US60H module.
Specifications
- Product Status: Active
- IGBT Type: -
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 695 W
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 200A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: -
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: -
