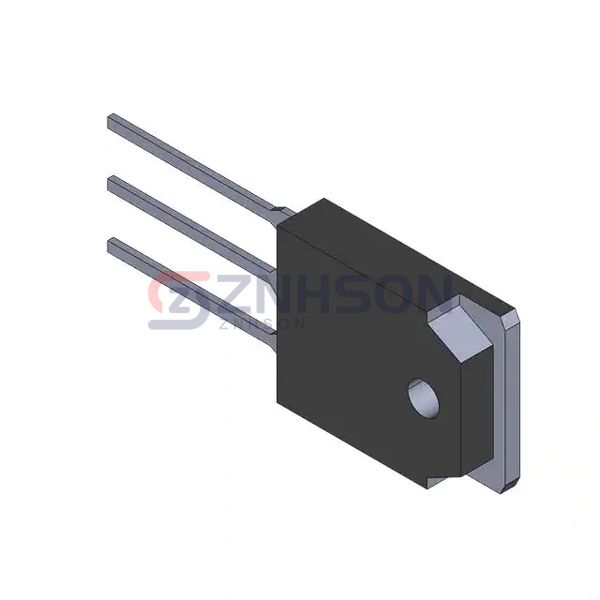

FQA70N15
Fairchild Semiconductor
Fairchild Semiconductor
POWER FIELD-EFFECT TRANSISTOR, 7
$0.00
Available to order
Reference Price (USD)
1+
$4.02000
10+
$3.59100
450+
$2.65751
900+
$2.15473
1,350+
$2.01109
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FQA70N15 from Fairchild Semiconductor redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the FQA70N15 offers the precision and reliability you need. Trust Fairchild Semiconductor to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 28mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 175 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 5400 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 330W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-3PN
- Package / Case: TO-3P-3, SC-65-3
