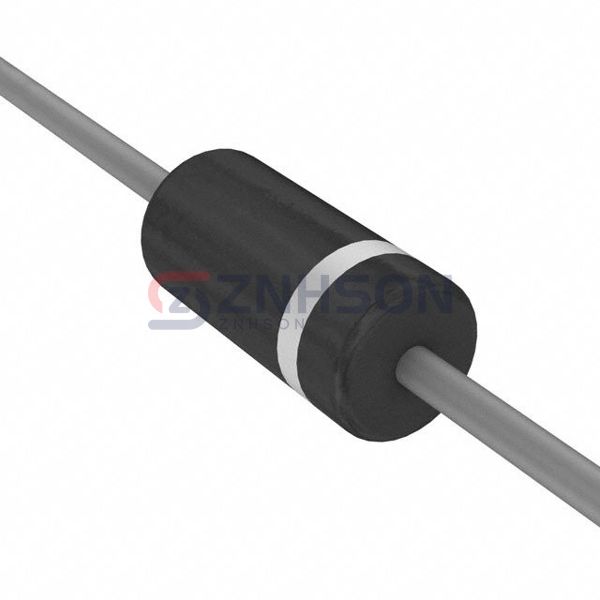

FR156G
SMC Diode Solutions
SMC Diode Solutions
DIODE GPP 800V 1.5A DO15
$0.07
Available to order
Reference Price (USD)
1+
$0.06629
500+
$0.0656271
1000+
$0.0649642
1500+
$0.0643013
2000+
$0.0636384
2500+
$0.0629755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FR156G from SMC Diode Solutions is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. SMC Diode Solutions's dedication to quality means the FR156G meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 1.5 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 500 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 560 V
- Capacitance @ Vr, F: 25pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AC, DO-15, Axial
- Supplier Device Package: DO-15
- Operating Temperature - Junction: -65°C ~ 150°C
