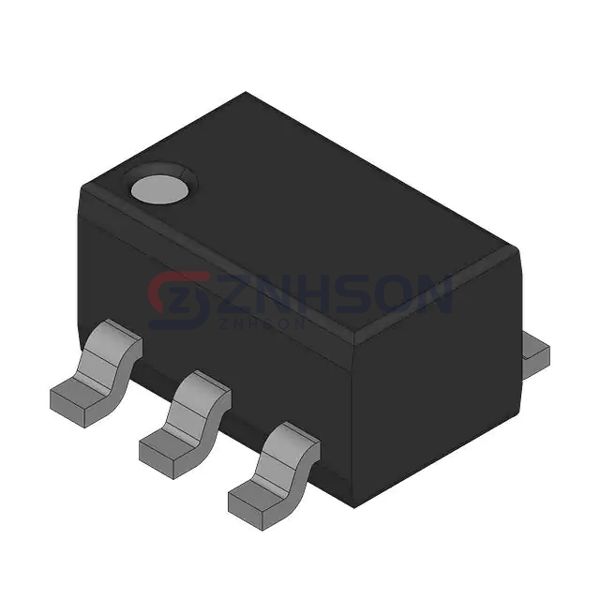

FSA4157P6
Fairchild Semiconductor
Fairchild Semiconductor
LOW VOLTAGE 1 OHM SPDT ANALOG SW
$0.00
Available to order
Reference Price (USD)
250+
$0.81700
500+
$0.72200
1,250+
$0.57000
2,500+
$0.53200
6,250+
$0.50540
12,500+
$0.48640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FSA4157P6 represents Fairchild Semiconductor's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.15Ohm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35ns, 15ns
- -3db Bandwidth: 300MHz
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 12pF
- Current - Leakage (IS(off)) (Max): 2nA (Typ)
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-88 (SC-70-6)
Related Products
Analog Devices Inc./Maxim Integrated
IH5051MJE/883B
Analog Devices Inc./Maxim Integrated
MAX4519ESD
Analog Devices Inc./Maxim Integrated
MAX4534CSD+T
Intersil
ISL43143IRZ
Texas Instruments
SN74LV4066ARGYRG4
Texas Instruments
TS5A3159DCKTG4
Vishay Siliconix
DG2711DL-T1-GE3
Analog Devices Inc.
ADG758BCP
Nexperia USA Inc.

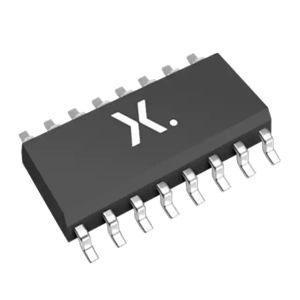

HEF4051BT,013
