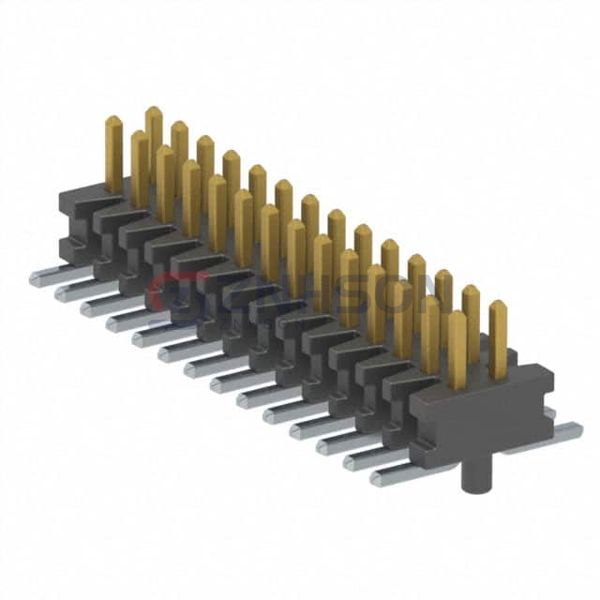

FTMH-114-03-L-DV-A
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 28POS 1MM
$8.60
Available to order
Reference Price (USD)
1+
$5.53000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the FTMH-114-03-L-DV-A rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the FTMH-114-03-L-DV-A is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.065" (1.65mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: End Shrouds
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.8A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-107-04-F-DV-A
Hirose Electric Co Ltd
DF14A-30P-1.25H(52)
Samtec Inc.
TMM-103-06-L-S-SM
Hirose Electric Co Ltd
HIF3H-10PB-2.54DSA(61)
Sullins Connector Solutions
NRPN382PAEN-RC
Samtec Inc.
TSW-149-14-G-S
Samtec Inc.

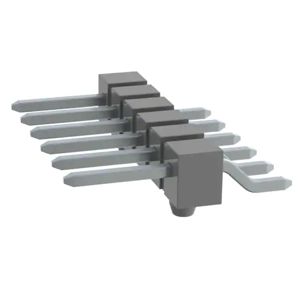

TSM-106-01-TM-SH-A-K
TE Connectivity AMP Connectors

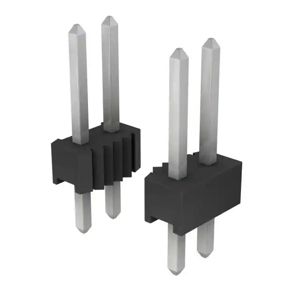

4-103777-0-18
