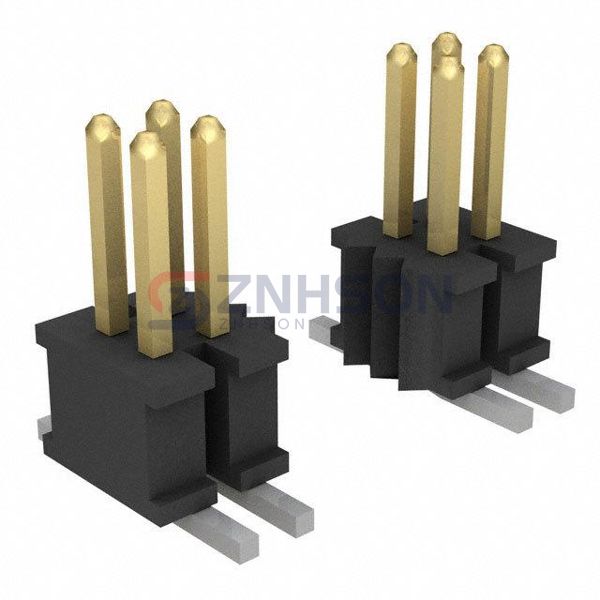

FTSH-106-01-L-DV-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 12POS 1.27MM
$3.88
Available to order
Reference Price (USD)
1+
$3.88000
500+
$3.8412
1000+
$3.8024
1500+
$3.7636
2000+
$3.7248
2500+
$3.686
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-106-01-L-DV-P male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-401-22LF
Harwin Inc.
M80-5501642
Samtec Inc.
TMM-132-06-L-D-SM-P-TR
Sullins Connector Solutions
GBC28DABN-M30
TE Connectivity AMP Connectors
6-146256-0
Samtec Inc.

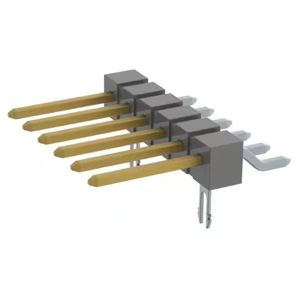

TSM-106-02-F-SH-LC-P-TR
Preci-Dip

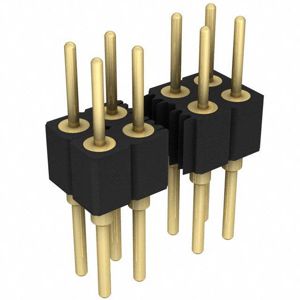

832-10-060-10-001101
Sullins Connector Solutions

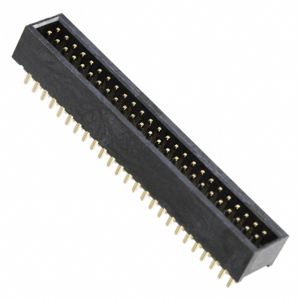

SBH51-LPSE-D25-ST-BK
