FTSH-139-01-L-MT
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 78POS 1.27MM
$11.61
Available to order
Reference Price (USD)
1+
$11.24000
10+
$10.74900
25+
$9.77200
50+
$9.28320
100+
$9.03900
250+
$8.06176
500+
$7.57318
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FTSH-139-01-L-MT by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the FTSH-139-01-L-MT supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 78
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle; Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
FTMH-108-02-L-DV-ES-A-P-TR
Amphenol ICC (FCI)
77311-802-20LF
Samtec Inc.
TMM-103-04-T-D-SM-P-TR
Amphenol ICC (FCI)
65692-008LF
Amphenol ICC (Commercial Products)
G825M08401YEU
Sullins Connector Solutions
SBH41-NBPB-D40-SM-BK
Mill-Max Manufacturing Corp.
850-10-019-40-001000
Samtec Inc.

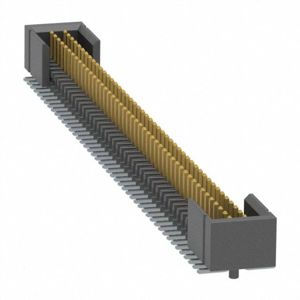

FTMH-146-02-F-DV-ES-A
Samtec Inc.

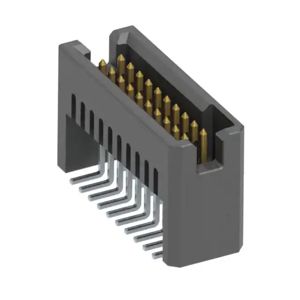

TFM-110-22-L-D-P-TR
