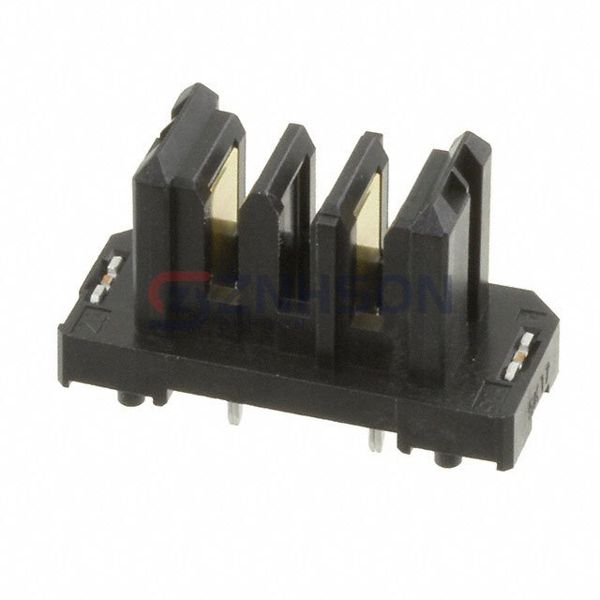

FX30B-2P-7.62DSA20
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 2POS 7.62MM
$3.49
Available to order
Reference Price (USD)
1+
$2.85000
10+
$2.73600
252+
$1.99500
504+
$1.93800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FX30B-2P-7.62DSA20 male pin header by Hirose Electric Co Ltd offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Hirose Electric Co Ltd for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.300" (7.62mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.559" (14.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 16A
- Voltage Rating: 250V
Related Products
Preci-Dip
350-80-110-00-024101
Sullins Connector Solutions
SBH11-PBPC-D20-ST-BK
Samtec Inc.
TSW-128-08-S-D
Samtec Inc.
TMM-106-06-L-D-SM
Sullins Connector Solutions
PBC28DADN
Samtec Inc.

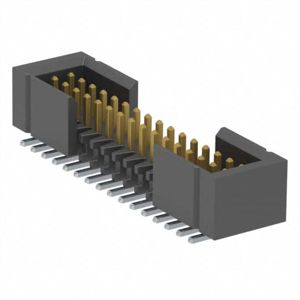

FTMH-116-03-L-DV-ES
Amphenol ICC (Commercial Products)

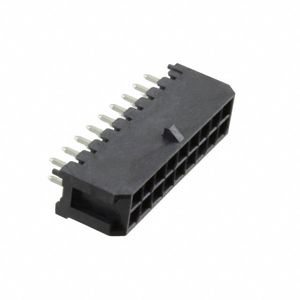

G881A18102T3EU
Samtec Inc.
TMM-103-01-T-Q-RE
Samtec Inc.

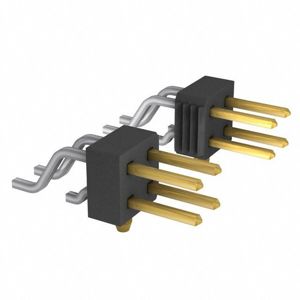

TSM-120-01-L-DH-A-K
