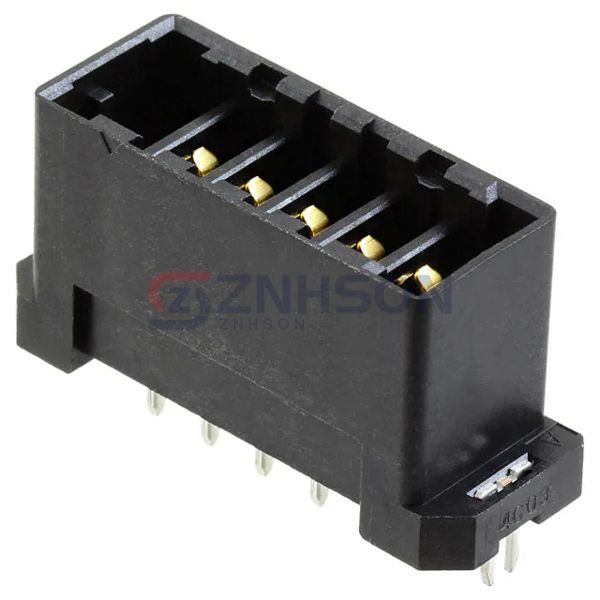

FX30B-5S-3.81DSA
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN RCPT 5POS 0.15 GOLD PCB
$5.67
Available to order
Reference Price (USD)
1+
$4.75000
35+
$4.18000
105+
$3.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FX30B-5S-3.81DSA Hirose Electric Co Ltd Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, Hirose Electric Co Ltd provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Blade Socket
- Style: Board to Board
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.150" (3.81mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Insulation Color: Black
- Insulation Height: 0.630" (16.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 20mm, 25mm, 30mm
- Ingress Protection: -
- Features: Board Guide, Board Lock
- Current Rating (Amps): 13A
- Voltage Rating: 250V
