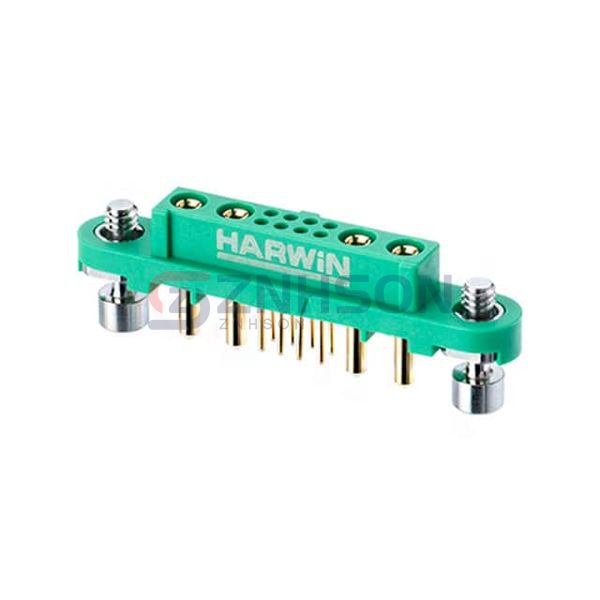

G125-FV10805F1-2AB2ABP
Harwin Inc.
Harwin Inc.
CONN F-HDR 4PWR 8SIG PCB VERT
$70.44
Available to order
Reference Price (USD)
1+
$70.44000
500+
$69.7356
1000+
$69.0312
1500+
$68.3268
2000+
$67.6224
2500+
$66.918
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with G125-FV10805F1-2AB2ABP Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Harwin Inc. connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 12 (8 + 4 Power)
- Number of Positions Loaded: All
- Pitch - Mating: 0.049" (1.25mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Green
- Insulation Height: 0.207" (5.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -65°C ~ 150°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Jackscrews, Mating Flange, Pick and Place, Polarizing Key
- Current Rating (Amps): 2A, 10A
- Voltage Rating: 450V
