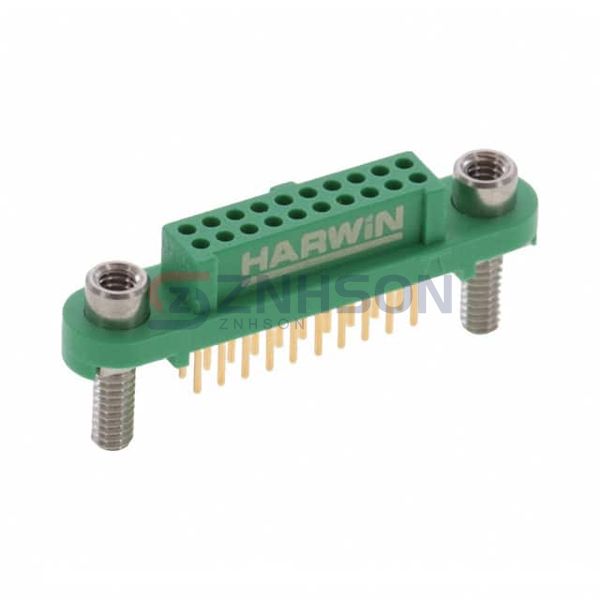

G125-FV12005F3P
Harwin Inc.
Harwin Inc.
CONN RCPT 20POS 0.049 GOLD PCB
$40.52
Available to order
Reference Price (USD)
1+
$27.58000
10+
$24.89300
100+
$21.61370
500+
$19.82498
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with G125-FV12005F3P Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Harwin Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.049" (1.25mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Insulation Color: Green
- Insulation Height: 0.207" (5.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -65°C ~ 150°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 7.25mm, 7.33mm
- Ingress Protection: -
- Features: Jackscrews, Pick and Place, Polarizing Key
- Current Rating (Amps): 2A
- Voltage Rating: 450V
