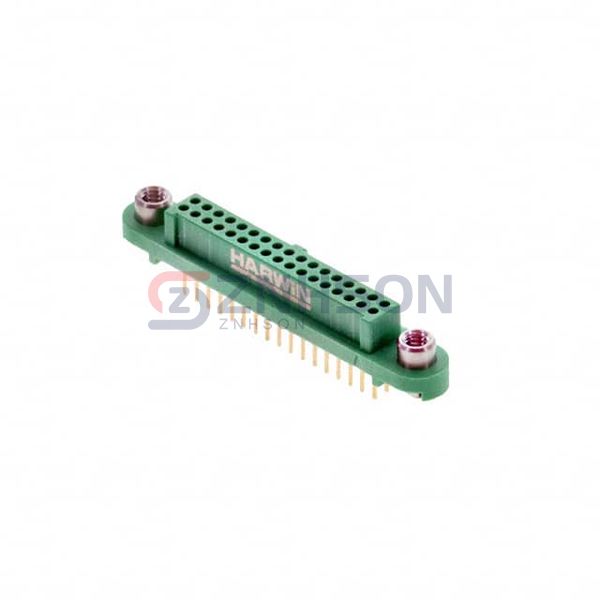

G125-FV13405F2P
Harwin Inc.
Harwin Inc.
CONN RCPT 34POS 0.049 GOLD PCB
$55.41
Available to order
Reference Price (USD)
1+
$41.04000
10+
$37.04900
100+
$32.16830
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-FV13405F2P Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Harwin Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 34
- Number of Positions Loaded: All
- Pitch - Mating: 0.049" (1.25mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Insulation Color: Green
- Insulation Height: 0.207" (5.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -65°C ~ 150°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 7.25mm, 7.33mm
- Ingress Protection: -
- Features: Pick and Place, Polarizing Key
- Current Rating (Amps): 2A
- Voltage Rating: 450V
