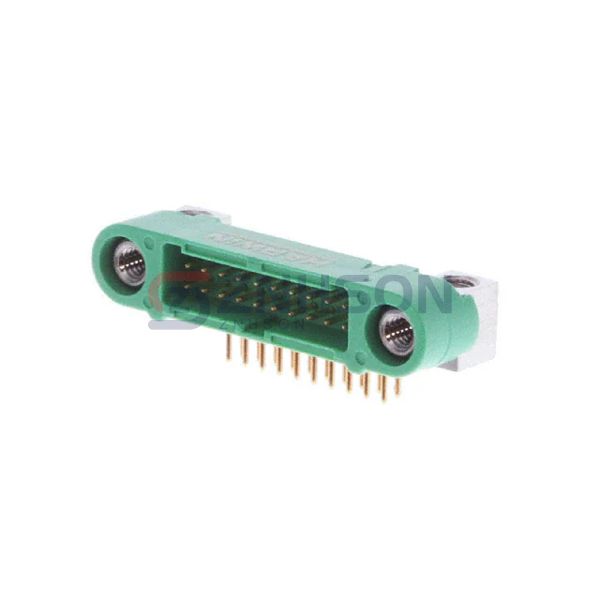

G125-MH12005M4P
Harwin Inc.
Harwin Inc.
CONN HDR 1.25MM R/A 20POS
$19.52
Available to order
Reference Price (USD)
1+
$19.52000
500+
$19.3248
1000+
$19.1296
1500+
$18.9344
2000+
$18.7392
2500+
$18.544
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the G125-MH12005M4P rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the G125-MH12005M4P ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.209" (5.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 450V
