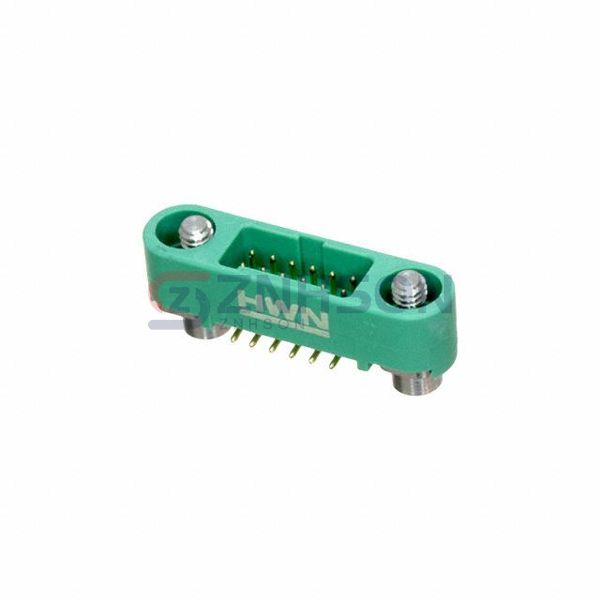

G125-MS11205M3P
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 12POS 1.25MM
$13.94
Available to order
Reference Price (USD)
1+
$14.91000
10+
$13.55400
100+
$11.52090
500+
$9.82666
1,000+
$9.01341
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the G125-MS11205M3P rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the G125-MS11205M3P ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A
- Voltage Rating: 450V
