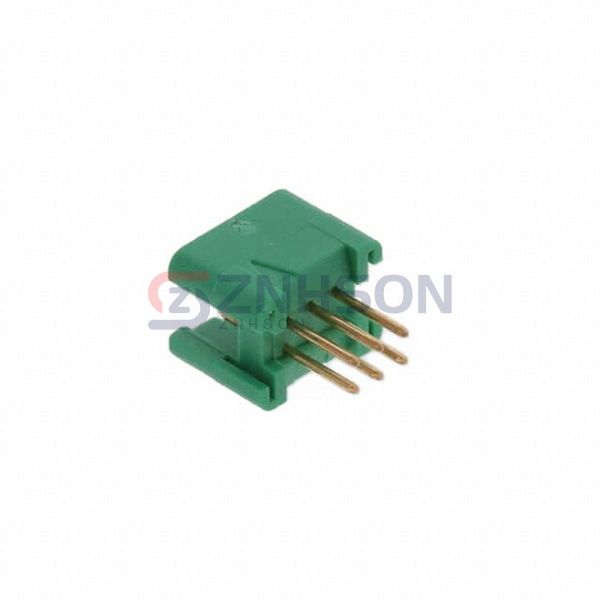

G125-MV10605L0R
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 6POS 1.25MM
$5.80
Available to order
Reference Price (USD)
250+
$3.18676
500+
$3.09570
750+
$2.82255
1,250+
$2.64045
1,750+
$2.54940
2,500+
$2.45835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G125-MV10605L0R by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.049" (1.25mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features: Board Lock, Pick and Place
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 2A per Contact
- Voltage Rating: -
