G846A202100T1HR
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
WIRE TO BOARD 1.0MM PITCH,STR SM
$1.90
Available to order
Reference Price (USD)
1+
$1.90000
500+
$1.881
1000+
$1.862
1500+
$1.843
2000+
$1.824
2500+
$1.805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

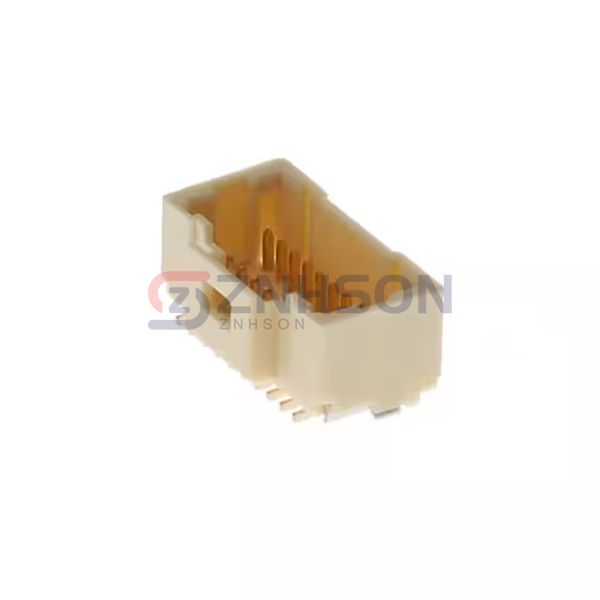

Optimize your interconnections with the G846A202100T1HR rectangular connector header from Amphenol ICC (Commercial Products). These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the G846A202100T1HR is perfect for automotive, industrial, and consumer electronics. Amphenol ICC (Commercial Products) ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA4T), Nylon 4T, Halogen Free
- Features: Pick and Place
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 50VAC/DC
Related Products
TE Connectivity AMP Connectors
9-146252-0-27
Samtec Inc.
MMT-104-02-S-DH-P
Mill-Max Manufacturing Corp.
802-10-006-10-001000
Samtec Inc.
FTSH-125-01-L-DH-A-C
Mill-Max Manufacturing Corp.
850-10-034-10-001000
Sullins Connector Solutions
SBH11-PBPC-D13-ST-BK
TE Connectivity Erni
474811
Samtec Inc.

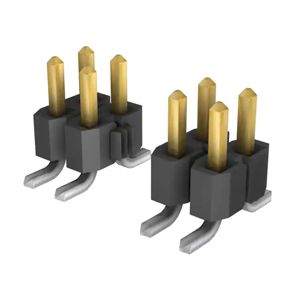

TSM-105-04-F-DV-P
