G846A24211T4EU
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
WIRE TO BOARD 1.0MM PITCH,STR SM
$2.15
Available to order
Reference Price (USD)
1+
$2.15000
500+
$2.1285
1000+
$2.107
1500+
$2.0855
2000+
$2.064
2500+
$2.0425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

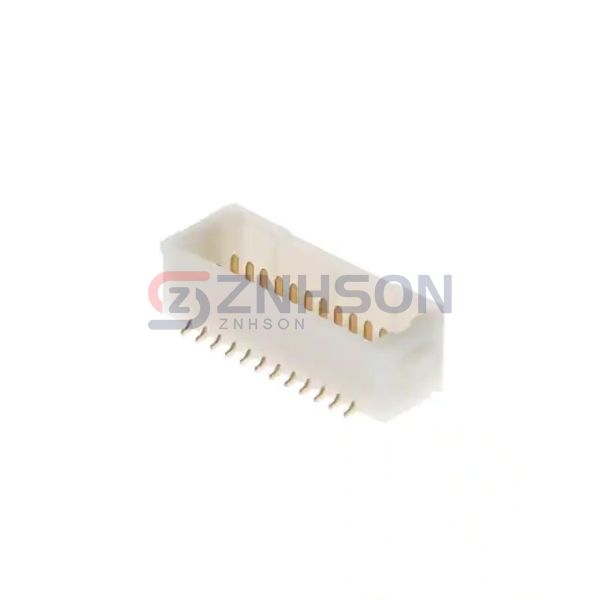

Choose the G846A24211T4EU rectangular connector header from Amphenol ICC (Commercial Products) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (Commercial Products) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.171" (4.35mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA9T), Nylon 9T, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 50VAC/DC
