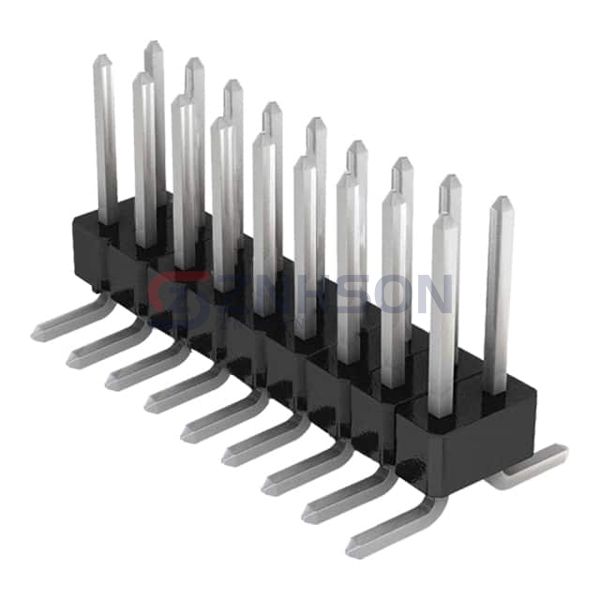

GBC09DABN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 18POS 2.54MM
$1.75
Available to order
Reference Price (USD)
1+
$1.75000
10+
$1.58800
25+
$1.49040
50+
$1.42560
100+
$1.36080
250+
$1.23120
500+
$1.13400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the GBC09DABN-M30 rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the GBC09DABN-M30 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
ZSS-110-03-L-D-740
Samtec Inc.
FTMH-112-02-F-DV-TR
JAE Electronics
MX34032NF4
Samtec Inc.
TSM-115-01-L-SH
Samtec Inc.
MMT-125-01-T-MT-TR
Sullins Connector Solutions
SBH51-LPSE-D04-SP-BK
Sullins Connector Solutions
PEC23SAFN
Samtec Inc.

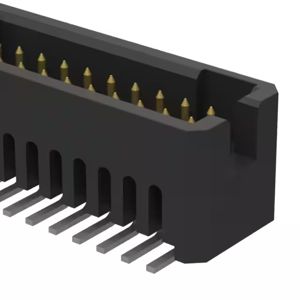

TFC-125-02-L-D-TR
Samtec Inc.

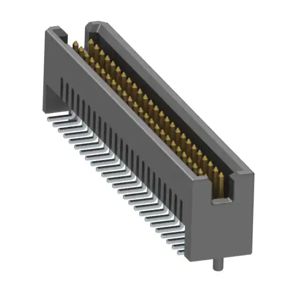

TFM-125-12-L-D-A-K-TR
