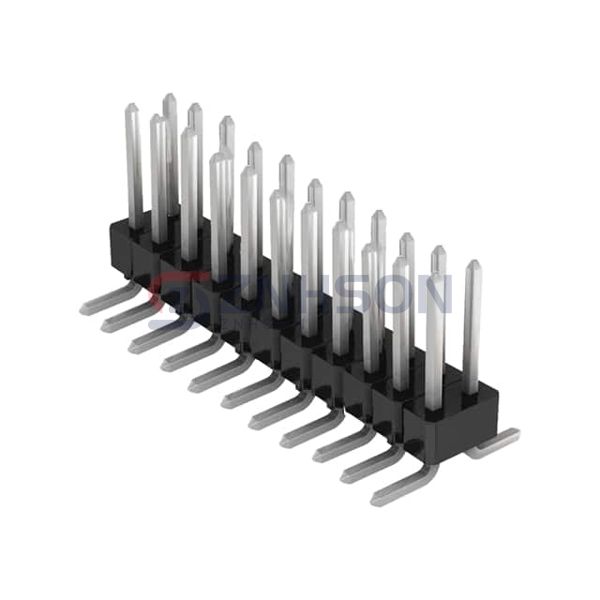

GBC11DABN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 22POS 2.54MM
$2.14
Available to order
Reference Price (USD)
1+
$2.14000
10+
$1.94000
25+
$1.82160
50+
$1.74240
100+
$1.66320
250+
$1.50480
500+
$1.38600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GBC11DABN-M30 by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the GBC11DABN-M30 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
800-80-055-10-002101
Preci-Dip
353-10-152-00-001101
Amphenol ICC (FCI)

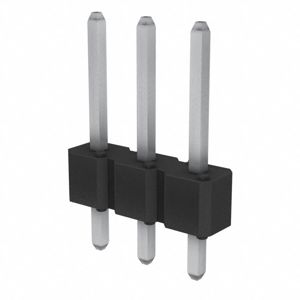

77311-427-03LF
Molex

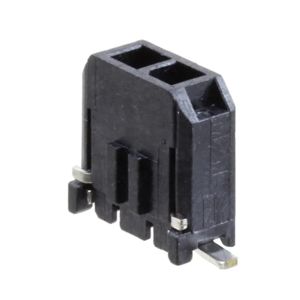

0436500226
Molex

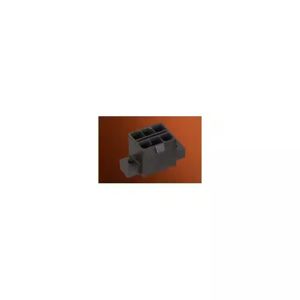

15-97-7042
Samtec Inc.

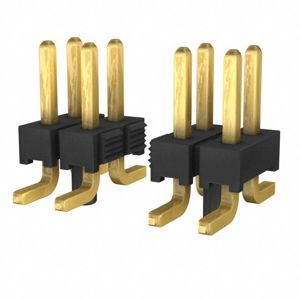

TMM-115-01-G-D-SM-A-P
Amphenol ICC (FCI)

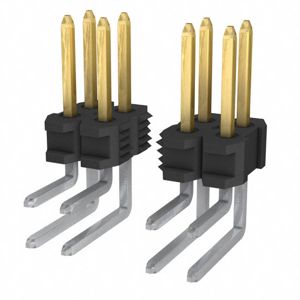

76345-104-72LF
Samtec Inc.

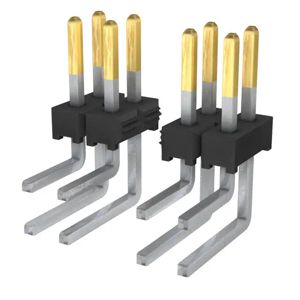

TMM-137-01-S-D-RA
Samtec Inc.

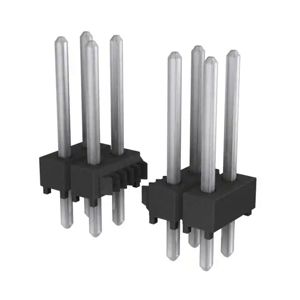

TSW-144-14-T-D
