GBED204-1379B001C1AD
Greenconn
Greenconn
PITCH 1.27MM MALE SMC Q TYPE SMT
$2.04
Available to order
Reference Price (USD)
1+
$2.04000
500+
$2.0196
1000+
$1.9992
1500+
$1.9788
2000+
$1.9584
2500+
$1.938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

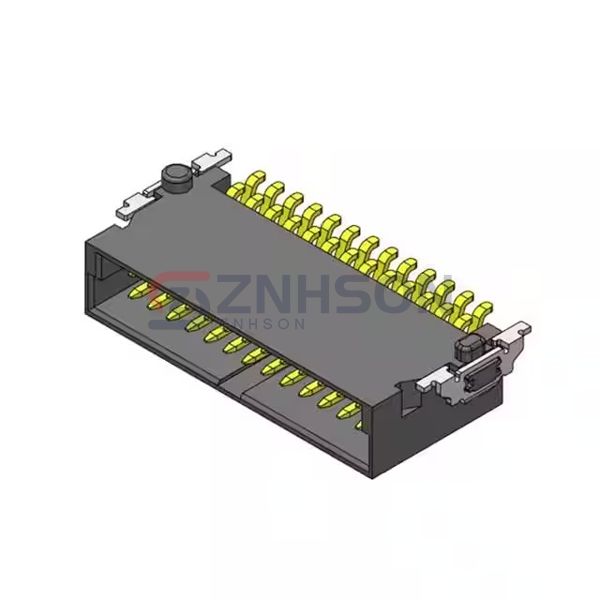

Enhance your electronic assemblies with the GBED204-1379B001C1AD rectangular connector header from Greenconn. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the GBED204-1379B001C1AD meets the highest industry standards. Greenconn provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Square
- Contact Finish - Mating: -
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.7A per Contact
- Voltage Rating: -
